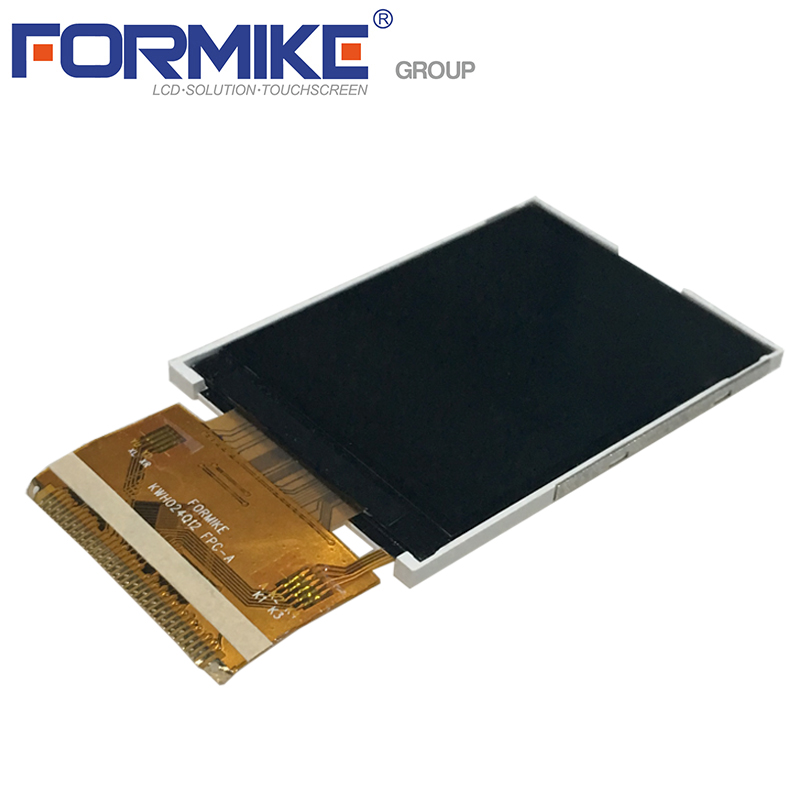

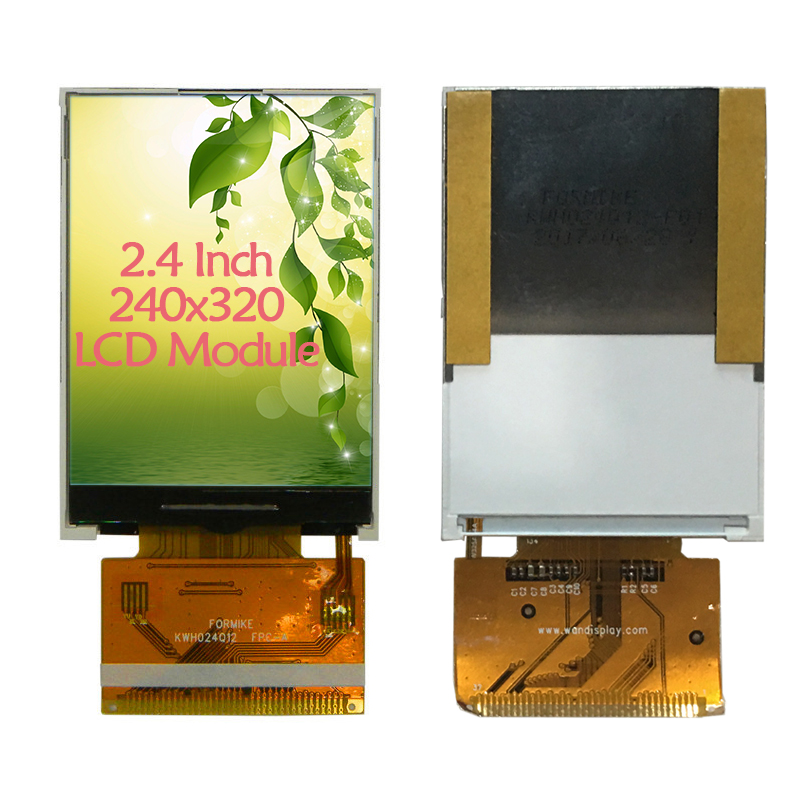

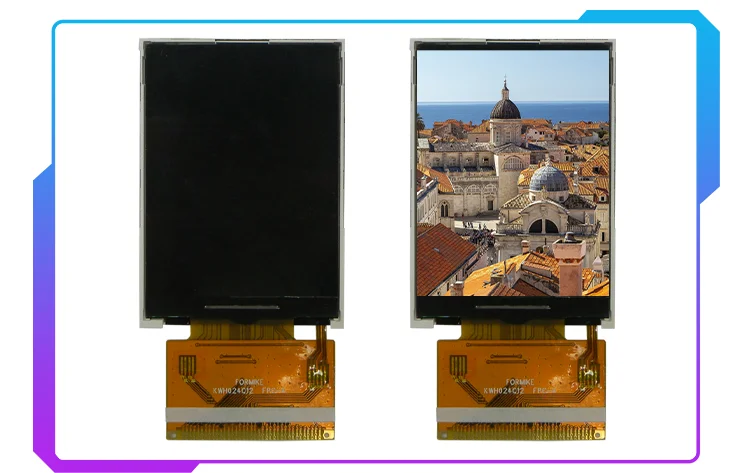

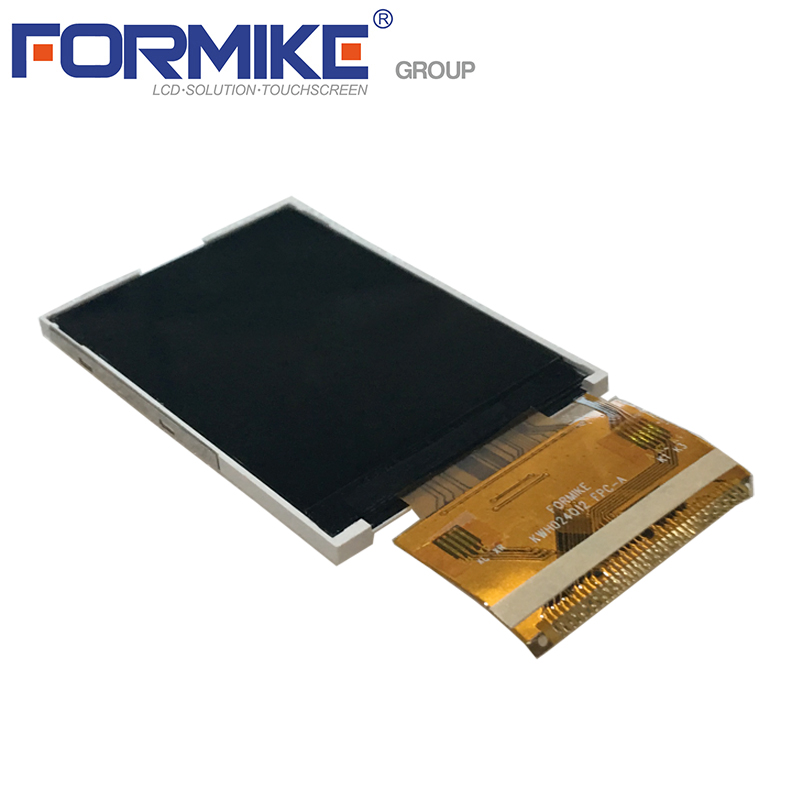

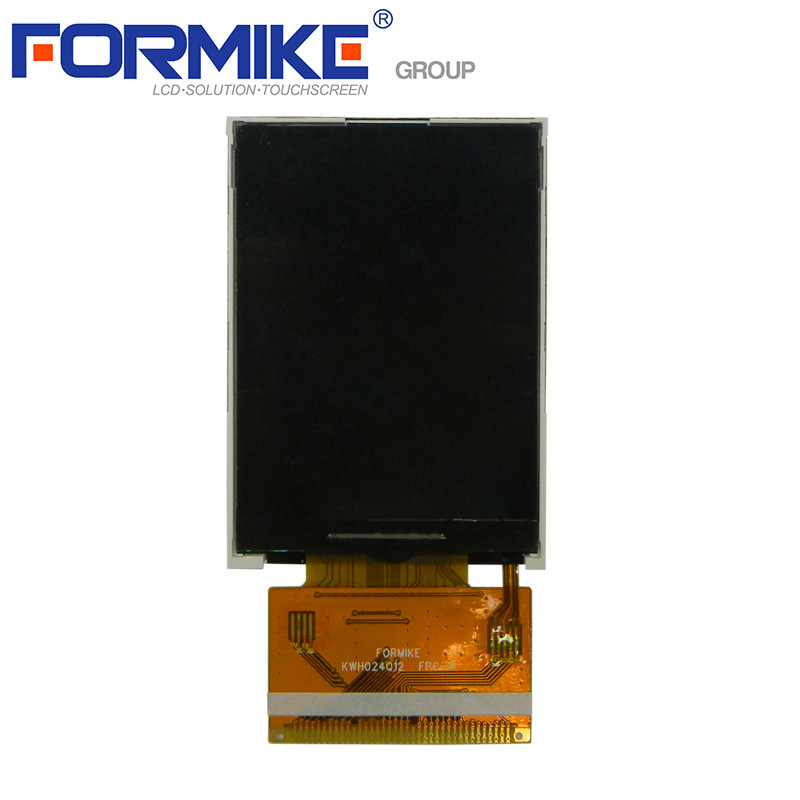

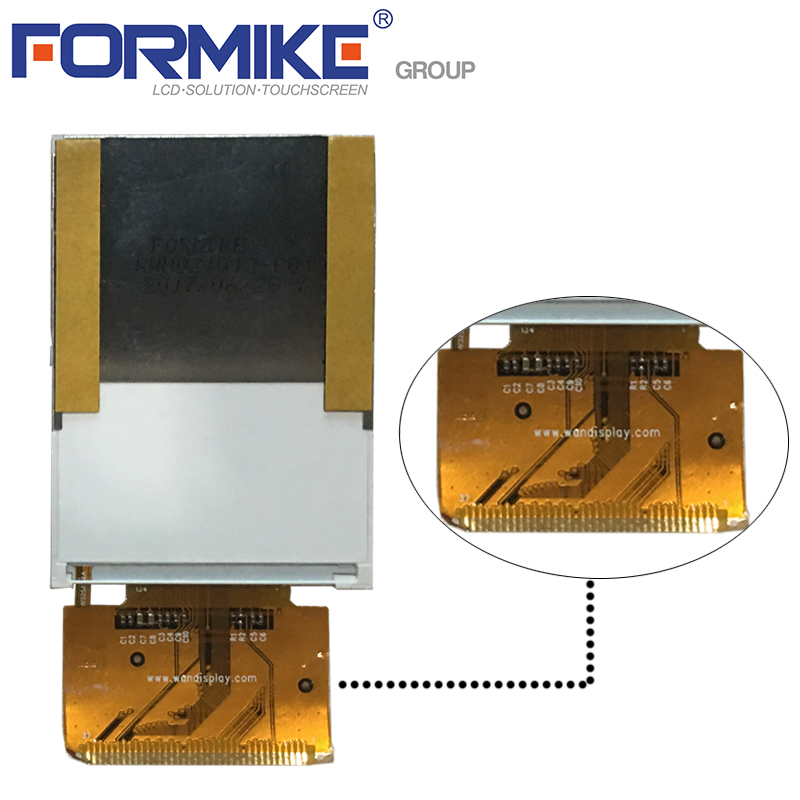

2.4 Inch 240x320 TFT LCD Display

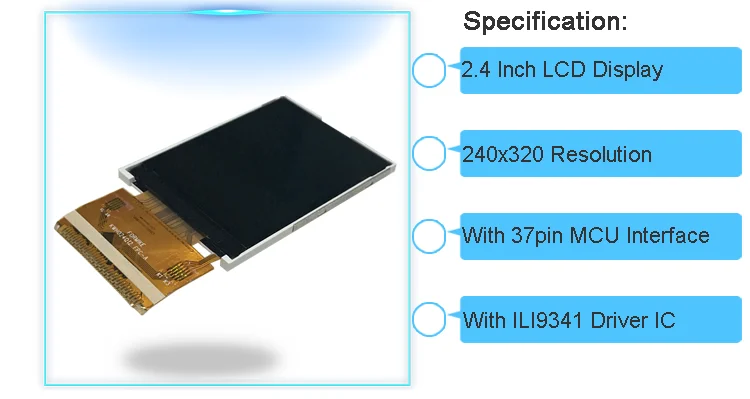

This 2.4 Inch TFT LCD Display is a compact, high-performance transmissive liquid crystal module designed for clear visual output. It features a sharp 240x320 resolution and is powered by the reliable ILI9341 driver IC. The core assembly consists of the TFT-LCD panel, a 37-pin MCU interface, and a robust backlight system comprising 4 parallel white LEDs providing 280 cd/m² brightness.

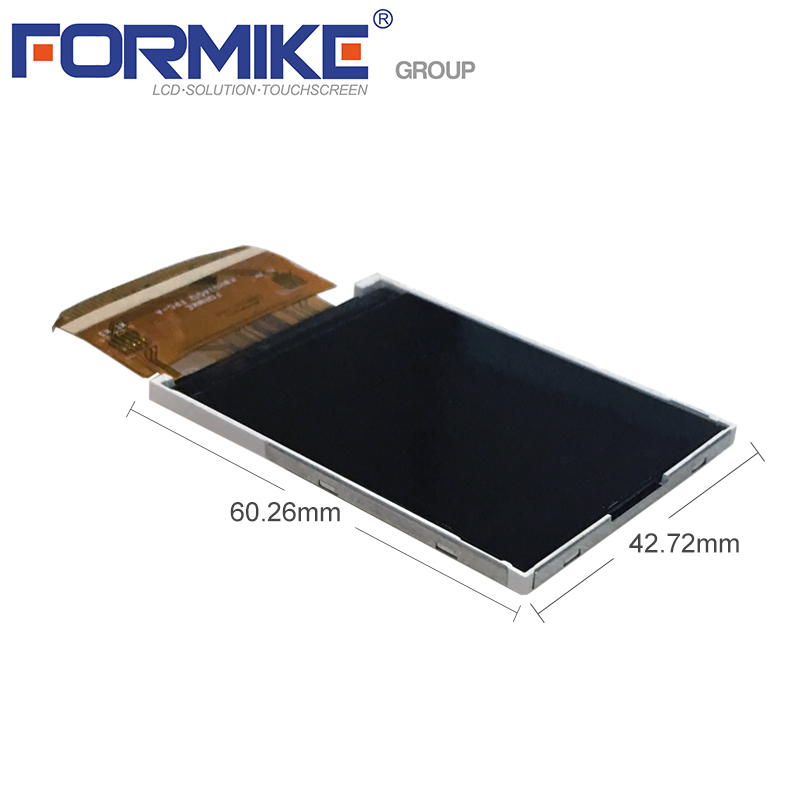

Technically, the display offers a 500:1 contrast ratio and a 6 o’clock viewing direction, ensuring vivid imagery and text readability. With its slim 2.50mm profile and low power requirements (60mA/3.2V), it is an ideal choice for handheld instruments, IoT terminals, and industrial control panels where space and efficiency are critical. It delivers a stable, professional-grade interface solution for various smart hardware applications.

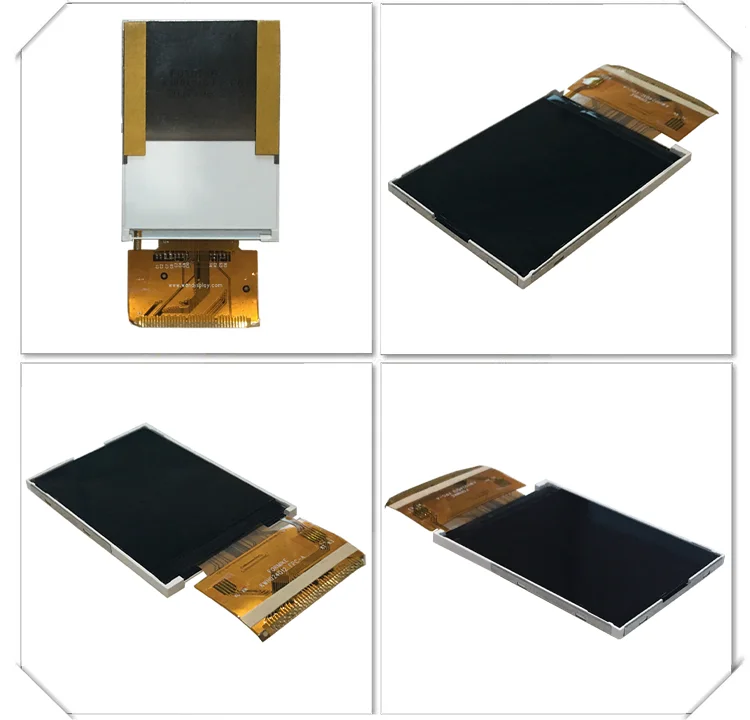

Features of This 2.4 Inch TFT LCD Display

1. KWH024Q12-F01 is a Transmissive type color active matrix liquid crystal display (LCD).


2. It is composed of a TFT LCD panel, driver IC, FPC, backlight.

3. It is 240x320 resolution TFT LCD module.

4. Backlight with different brightness options from 250 - 1500cd/m2 are available.

5. Specific touch panel can be designed & customized.

6. RoHS & REACH compliant.

7. If you can't find a suitable one, contact us to get a recommendation.

Applications of the 2.4" TFT LCD

This versatile display is designed for compact devices that require a professional, high-definition interface. Its low power consumption and slim 2.5mm profile make it ideal for:

• Handheld Devices: Perfect for digital multimeters, portable testers, and medical monitoring devices.

• IoT & Smart Home: Suitable for smart thermostats, security keypads, and control hubs.

• Industrial Automation: Used in PLC interfaces, small sensor displays, and equipment controllers.
